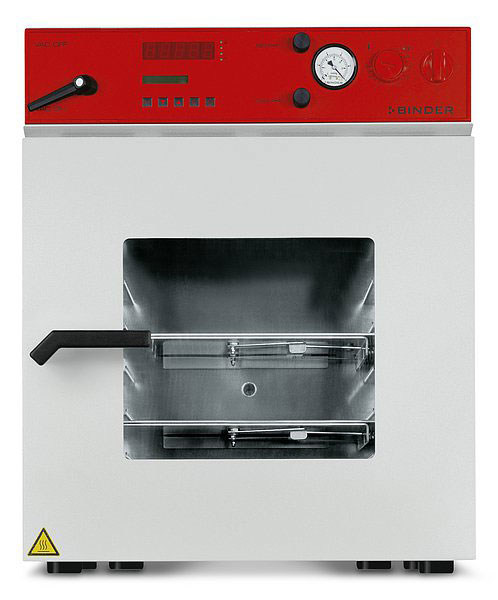

VACUUM ETUV VDL SERIES
INFORMATION
- - Temperature range: room temperature plus 15 °C to 200 °C
- - ATEX compliance chamber's interior: Ex II -/3G c IIB T3-T1 Gc X
- - APT.line™ preheating chamber technology
- - Controller with time-segment and real-time programming
- - 2 aluminum expansion racks
- - Inert gas connection
- - Shatterproof, spring-mounted safety glass panel
- - Pressurized instrument panel with compressed air connection
- - Pressure control device for heating activated < 125 mbar
- - Flame protection gasket
- - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- - Computer interface: RS 422
| Models | Housing dimensions not incl. fittings and connections W x H x D [mm] | Internal dimension W x H x D [mm] | Net weight [kg] | Interior volume [L] |
|---|---|---|---|---|
| VDL 23 | 515 x 665 x 500 | 285 x 285 x 295 | 63 | 23 |
| VDL 53 | 635 x 775 x 550 | 400 x 400 x 340 | 95 | 53 |
| VDL 115 | 740 x 900 x 670 | 506 x 506 x 460 | 153 | 115 |
